2-Way 功分器： 接头封装, .004-3000 MHz；接头封装, 10-30 watts, to18 GHz； 高功率, 100-500 watts

3-Way 功分器： 接头封装, 0.5-20 GHz

4-Way 功分器：接头封装, 0.5-18 GHz；高功率25-400watts

6-Way 功分器：接头封装, 0.8-22 GHz

8-Way 功分器：接头封装, 0.8-18 GHz

12, 16-Way 功分器：低频率, 0.01-2000MHz ；高频率,0.5-18GHz

6-Way 功分器 - 0° 0.8-22GHz

频率（GHz）

插损（dB）MAX.

隔离（dB）MIN.

幅度平衡（dB）MAX.

相位平衡（°）MAX.

驻波比MAX.

P/N

0.8-0.9

0.6

20

0.4

3.0

1.50:1

OPD6-01-434/2S

0.8-0.9

0.6

20

0.4

3.0

1.50:1

OPD6-01-434/2N

0.8-1.0

0.6

20

0.3

3.0

1.20:1

OPD6-02-434/1S

0.8-1.0

0.6

20

0.3

3.0

1.20:1

OPD6-02-434/1N

1.7-1.9

0.8

20

0.3

5.0

1.30:1

OPD6-03-434/1S

1.7-1.9

0.8

20

0.3

5.0

1.30:1

OPD6-03-434/1N

0.4-2.0

1.2

18

0.4

5.0

1.50:1

OPD6-08-434/4S

1.0-2.0

0.9

18

0.4

3.0

1.50:1

OPD6-04-434/2S

1.0-2.0

0.9

18

0.4

3.0

1.50:1

OPD6-04-434/2N

0.8-2.2

1.4

18

0.4

6.0

1.60:1

OPD6-07-434/2S

0.8-2.2

1.4

18

0.4

6.0

1.60:1

OPD6-07-434/2N

0.8-2.5

1.0

18

0.4

5.0

1.50:1

OPD6-09-434/2S

2.0-4.0

1.7

17

0.5

4.0

1.60:1

OPD6-05-434/2N

2.0-4.0

1.7

17

0.5

4.0

1.60:1

OPD6-05-434/2S

4.0-8.0

2.0

16

0.6

5.0

1.70:1

OPD6-06-434/1N

4.0-8.0

2.0

16

0.6

5.0

1.70:1

OPD6-06-434/1S

2.0-18.0

2.5

15

0.8

10.0

2.00:1

OPD6-49-434/4S

5.0-18.0

2.0

15

0.8

10.0

1.80:1

OPD6-50-434/3S

12.0-22.0

2.0

15

0.8

10.0

1.80:1

OPD6-51-434/3S

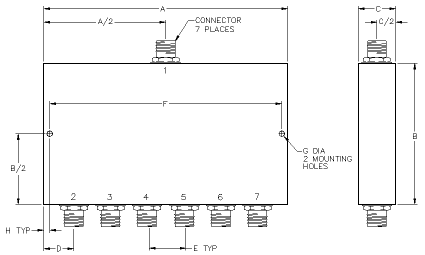

Outline

Conn.

A

B

C

D

E

F

G

H

434/1S

SMA

4.75

3.00

.50

.50

.75

4.50

.125

.125

434/1B

BNC

4.75

3.00

.50

.50

.75

4.50

.125

.125

434/1N

N

6.00

3.00

1.00

.50

1.00

5.75

.125

.125

434/2S

SMA

4.00

3.45

.40

.50

.60

3.75

.125

.125

434/2N

N

6.00

3.45

1.00

.50

1.00

5.75

.125

.125

434/3S

SMA

3.50

2.00

.40

.50

.50

3.25

.125

.125

434/4S

SMA

4.00

6.00

.40

.50

.60

3.70

.125

.150
