2-Way 功分器： 接头封装, .004-3000 MHz；接头封装, 10-30 watts, to18 GHz； 高功率, 100-500 watts
3-Way 功分器： 接头封装, 0.5-20 GHz
4-Way 功分器：接头封装, 0.5-18 GHz；高功率25-400watts
6-Way 功分器：接头封装, 0.8-22 GHz
8-Way 功分器：接头封装, 0.8-18 GHz
12, 16-Way 功分器：低频率, 0.01-2000MHz ；高频率,0.5-18GHz
2-Way 功分器 - 0° 接头封装, 10-30W to18GHz |
频率（GHz） |
插损（dB）MAX. |
隔离（dB）MIN. |
幅度平衡（dB）MAX. |
相位平衡（°）MAX. |
驻波比MAX. |
输入功率MAX.（watt） |
P/N |
0.225-0.4 |
0.2 |
22 |
0.2 |
2.0 |
1.20:1 |
30 |
OPD2-01-450/1N |
0.225-0.4 |
0.2 |
25 |
0.2 |
2.0 |
1.20:1 |
30 |
OPD2-01-450/1S |
0.25-0.5 |
0.2 |
22 |
0.2 |
2.0 |
1.20:1 |
30 |
OPD2-02-450/1N |
0.25-0.5 |
0.2 |
22 |
0.2 |
2.0 |
1:20:1 |
30 |
OPD2-02-450/1S |
0.4-1.0 |
0.4 |
18 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-03-450/1N |
0.4-1.0 |
0.4 |
18 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-03-450/1S |
0.8-1.0 |
0.3 |
23 |
0.3 |
2.0 |
1.30:1 |
30 |
OPD2-04-450/1N |
0.8-1.0 |
0.3 |
23 |
0.3 |
2.0 |
1.30:1 |
30 |
OPD2-04-450/3S |
0.95-1.225 |
0.3 |
22 |
0.3 |
2.0 |
1.25:1 |
30 |
OPD2-05-450/3N |
0.95-1.225 |
0.3 |
22 |
0.3 |
2.0 |
1.25:1 |
30 |
OPD2-05-450/4S |
0.50-2.0 |
0.6 |
18 |
0.2 |
4.0 |
1.40:1 |
30 |
OPD2-06-450/1N |
0.50-2.0 |
0.6 |
22 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-06-450/2S |
1.0-2.0 |
0.3 |
22 |
0.2 |
3.0 |
1.30:1 |
30 |
OPD2-07-450/3N |
1.0-2.0 |
0.3 |
22 |
0.2 |
3.0 |
1.30:1 |
30 |
OPD2-07-450/4S |
0.8-2.2 |
0.4 |
20 |
0.2 |
3.0 |
1.30:1 |
30 |
OPD2-23-450/3S |
0.8-2.5 |
0.5 |
20 |
0.3 |
4.0 |
1.40:1 |
30 |
OPD2-25-450/2S |
1.5-3.0 |
0.3 |
20 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-08-450/3N |
1.5-3.0 |
0.3 |
20 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-08-450/4S |
0.5-4.0 |
0.5 |
16 |
0.3 |
4.0 |
1.40:1 |
30 |
OPD2-21-450/3S |
1.0-4.0 |
0.4 |
20 |
0.2 |
5.0 |
1.40:1 |
30 |
OPD2-09-450/1N |
1.0-4.0 |
0.4 |
20 |
0.2 |
5.0 |
1.40:1 |
30 |
OPD2-09-450/3S |
2.0-4.0 |
0.4 |
20 |
0.2 |
3.0 |
1.30:1 |
30 |
OPD2-10-450/3N |
2.0-4.0 |
0.4 |
20 |
0.2 |
3.0 |
1.30:1 |
30 |
OPD2-10-450/8S |
3.625-4.25 |
0.3 |
21 |
0.2 |
2.0 |
1.35:1 |
30 |
OPD2-11-450/3N |
3.625-4.25 |
0.3 |
21 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-11-450/8S |
0.5-6.0 |
0.6 |
18 |
0.3 |
4.0 |
1.40:1 |
30 |
OPD2-22-450/10S |
5.8-6.45 |
0.3 |
21 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-12-450/3N |
5.8-6.45 |
0.3 |
20 |
0.2 |
2.0 |
1.30:1 |
30 |
OPD2-12-450/8S |
0.5-8.0 |
1.0 |
18 |
0.5 |
5.0 |
1.50:1 |
30 |
OPD2-27-450/10S |
2.0-8.0 |
0.4 |
17 |
0.3 |
6.0 |
1.40:1 |
30 |
OPD2-13-450/3N |
2.0-8.0 |
0.4 |
20 |
0.3 |
4.0 |
1.40:1 |
30 |
OPD2-13-450/6S |
4.0-8.0 |
0.4 |
18 |
0.2 |
4.0 |
1.40:1 |
30 |
OPD2-14-450/3N |
4.0-8.0 |
0.4 |
20 |
0.2 |
2.0 |
1.40:1 |
30 |
OPD2-14-450/8S |
7.2-8.5 |
0.5 |
17 |
0.3 |
6.0 |
1.40:1 |
30 |
OPD2-15-450/3N |
7.2-8.5 |
0.5 |
20 |
0.2 |
3.0 |
1.40:1 |
30 |
OPD2-15-450/8S |
8.0-12.4 |
0.4 |
20 |
0.2 |
4.0 |
1.35:1 |
30 |
OPD2-16-450/8S |
10.0-15.0 |
0.4 |
20 |
0.2 |
4.0 |
1.40:1 |
30 |
OPD2-19-450/8S |
0.5-18.0 |
1.7 |
16 |
0.6 |
10.0 |
1.50:1 |
30 |
OPD2-20-450/10S |
1.0-18.0 |
1.5 |
17 |
0.5 |
8.0 |
1.60:1 |
30 |
OPD2-26-450/13S |
2.0-18.0 |
1.0 |
18 |
0.4 |
5.0 |
1.40:1 |
30 |
OPD2-18-450/9S |
2.0-18.0 |
1.0 |
15 |
0.4 |
5.0 |
1.40:1 |
30 |
OPD2-18-450/16S |
2.0-18.0 |
1.6 |
18 |
0.5 |
8.0 |
1.70:1 |
30 |
OPD2-18-450/14N |
5.0-18.0 |
0.5 |
17 |
0.4 |
5.0 |
1.40:1 |
30 |
OPD2-17-450/8S |
Outline 450

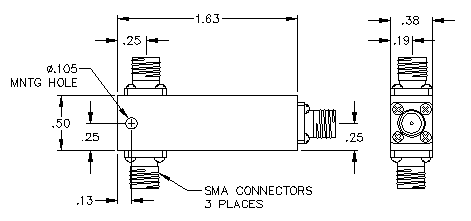

Outline 450/16S
Port Configuration |
Outline |
Conn. |
A |
B |
C |
D |
E |
F |
G |
H |
450/1S |
SMA |
2.10 |
2.10 |
0.50 |
.55 |
1.90 |
.125 |
.100 |
1.00 |
450/2S |
SMA |
2.00 |
1.50 |
0.50 |
.48 |
1.25 |
.125 |
.125 |
0.55 |
450/3S |
SMA |
1.60 |
1.60 |
0.50 |
.53 |
1.40 |
.125 |
.100 |
0.55 |
450/4S |
SMA |
1.25 |
1.50 |
0.50 |
.48 |
1.30 |
.125 |
.100 |
0.55 |
450/6S |
SMA |
1.60 |
1.25 |
0.38 |
.38 |
1.05 |
.104 |
.100 |
0.50 |
450/8S |
SMA |
0.80 |
1.04 |
0.38 |
.27 |
0.80 |
.125 |
.120 |
0.50 |
450/9S |
SMA |
1.80 |
1.05 |
0.40 |
.25 |
0.90 |
.100 |
.075 |
0.50 |
450/10S |
SMA |
5.90 |
1.00 |
0.40 |
.25 |
0.80 |
.125 |
.100 |
0.50 |
450/13S |
SMA |
3.90 |
1.00 |
0.40 |
.25 |
0.80 |
.125 |
.100 |
0.50 |
450/15S |
SMA |
0.60 |
1.04 |
0.38 |
.27 |
0.80 |
.125 |
.120 |
0.50 |
450/1N |
N |
2.10 |
2.10 |
1.00 |
.55 |
1.90 |
.125 |
.100 |
1.00 |
450/3N |
N |
1.25 |
2.00 |
1.00 |
.50 |
1.75 |
.125 |
.125 |
1.00 |
450/14N |
N |
1.80 |
2.00 |
1.00 |
.50 |
1.75 |
.125 |
.125 |
1.00 |
|
