2-Way 功分器： 接头封装, .004-3000 MHz；接头封装, 10-30 watts, to18 GHz； 高功率, 100-500 watts

3-Way 功分器： 接头封装, 0.5-20 GHz

4-Way 功分器：接头封装, 0.5-18 GHz；高功率25-400watts

6-Way 功分器：接头封装, 0.8-22 GHz

8-Way 功分器：接头封装, 0.8-18 GHz

12, 16-Way 功分器：低频率, 0.01-2000MHz ；高频率,0.5-18GHz

4-Way 功分器 - 0° 0.5-18GHz

频率（GHz）

插损（dB）MAX.

隔离（dB）MIN.

幅度平衡（dB）MAX.

相位平衡（°）MAX.

驻波比MAX.

输入功率（watt）MAX.

接头

P/N

0.5-1.0

0.9

20

0.4

5.0

1.50:1

30

N

OPD4-01-452/2N

0.5-1.0

0.9

22

0.4

5.0

1.50:1

30

SMA

OPD4-01-452/2S

0.5-2.0

1.3

18

0.4

6.0

1.50:1

30

N

OPD4-02-452/1N

0.5-2.0

1.3

20

0.4

6.0

1.50:1

30

SMA

OPD4-02-452/6S

1.0-2.0

0.8

18

0.4

6.0

1.40:1

30

N

OPD4-03-452/3N

1.0-2.0

0.8

20

0.4

6.0

1.40:1

30

SMA

OPD4-03-452/4S

0.8-2.2

1.0

20

0.4

6.0

1.40:1

30

SMA

OPD4-18-452/7S

0.5-2.5

1.3

18

0.4

6.0

1.50:1

30

N

OPD4-04-452/1N

0.5-2.5

1.3

20

0.4

6.0

1.50:1

30

SMA

OPD4-04-452/2S

0.8-2.5

0.8

20

0.4

8.0

1.50:1

30

SMA

OPD4-21-452/9S

1.0-3.0

1.0

17

0.5

6.0

1.50:1

30

N

OPD4-05-452/2N

1.0-3.0

0.9

18

0.5

6.0

1.50:1

30

SMA

OPD4-05-452/6S

0.5-3.5

0.8

20

0.4

8.0

1.40:1

30

SMA

OPD4-15-452/6S

1.0-4.0

1.0

20

0.4

6.0

1.50:1

30

SMA

OPD4-20-452/2S

2.0-4.0

0.6

18

0.5

6.0

1.40:1

30

N

OPD4-06-452/3N

2.0-4.0

0.6

20

0.5

6.0

1.40:1

30

SMA

OPD4-06-452/4S

3.62-4.25

0.6

19

0.5

6.0

1.40:1

30

N

OPD4-07-452/3N

3.62-4.25

0.6

19

0.5

6.0

1.35:1

30

SMA

OPD4-07-452/7S

0.5-6.0

1.5

17

0.5

8.0

1.60:1

30

SMA

OPD4-16-452/10S

5.8-6.45

0.6

19

0.5

6.0

1.40:1

30

N

OPD4-08-452/3N

5.8-6.45

0.6

19

0.5

6.0

1.35:1

30

SMA

OPD4-08-452/7S

0.5-8.0

1.8

18

0.5

6.0

1.50:1

30

SMA

OPD4-26-452/10S

2.0-8.0

1.2

17

0.5

6.0

1.45:1

30

N

OPD4-09-452/3N

2.0-8.0

1.0

18

0.5

6.0

1.45:1

30

SMA

OPD4-09-452/4S

4.0-8.0

0.6

18

0.5

6.0

1.45:1

30

N

OPD4-10-452/3N

4.0-8.0

0.6

19

0.5

6.0

1.45:1

30

SMA

OPD4-10-452/7S

7.2-8.5

1.0

17

0.5

8.0

1.55:1

30

N

OPD4-11-452/3N

7.2-8.5

1.0

18

0.5

8.0

1.45:1

30

SMA

OPD4-11-452/7S

1.0-12.0

2.0

19

0.4

6.0

1.50:1

30

SMA

OPD4-27-452/9S

8.0-12.4

0.8

16

0.5

6.0

1.45:1

30

SMA

OPD4-12-452/7S

3.0-15.0

1.0

18

0.4

8.0

1.40:1

30

SMA

OPD4-22-452/7S

8.0-15.0

1.0

16

0.5

8.0

1.50:1

30

SMA

OPD4-13-452/7S

0.5-18.0

4.0

16

0.5

8.0

1.60:1

30

SMA

OPD4-17-452/10S

1.0-18.0

3.6

17

0.5

8.0

1.60:1

30

SMA

OPD4-25-452/9S

2.0-18.0

1.8

17

0.5

12.0

1.70:1

20

SMA

OPD4-19-452/7S

5.0-18.0

1.2

16

0.5

8.0

1.60:1

30

SMA

OPD4-14-452/7S

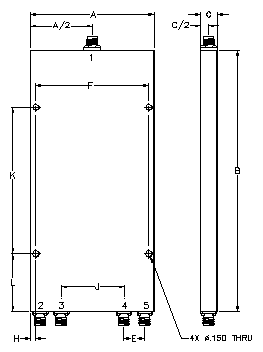

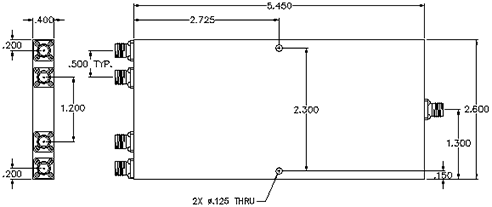

Outline Dimensions

Outline

Conn.

A

B

C

D

E

F

G

H

J

K

L

452/1S

SMA

3.10

3.70

.51

.50

.70

2.85

.125

.125

-

-

-

452/2S

SMA

3.60

3.40

.51

.75

.67

3.35

.125

.125

-

-

-

452/4S

SMA

2.80

2.00

.50

.40

.67

2.55

.125

.120

-

-

-

452/5S

SMA

2.30

1.54

.40

.40

.50

2.06

.110

.120

-

-

-

452/6S

SMA

2.63

2.90

.51

.55

.51

2.38

.125

.125

-

-

-

452/7S

SMA

2.23

2.15

.51

.35

.51

1.98

.125

.125

-

-

-

452/8S

SMA

1.98

1.46

.40

.24

.50

1.73

.125

.125

-

-

-

452/9S

SMA

2.60

5.45

.40

.55

.50

2.30

.125

.150

-

-

-

452/10S

SMA

2.95

6.25

.50

.25

.50

2.70

.150

.125

1.50

3.50

1.25

452/11S

SMA

2.20

1.75

.375

.60

.50

1.98

.125

.110

-

-

-

452/12S

SMA

2.20

7.40

.40

.35

.50

1.98

.125

.110

-

4.90

1.25

452/13S

SMA

2.30

.75

0.40

.35

.50

2.10

.125

.100

-

-

-

452/1N

N

4.00

3.90

1.00

.50

1.00

3.75

.125

.125

-

-

-

452/2N

N

4.00

3.40

1.00

.50

1.00

3.75

.125

.125

-

-

-

452/3N

N

4.00

2.15

1.00

.50

1.00

3.60

.125

.200

-

-

-

452/4N

N

4.00

1.50

1.00

.50

1.00

3.75

.146

.150

-

-

-

452/5N

N

4.00

2.90

1.00

.50

1.00

3.75

.125

.125

-
