2-Way 功分器 - 0° 100-500watts |
频率（GHz） |
插损（dB）MAX. |
隔离（dB）MIN. |
幅度平衡（dB）MAX. |
相位平衡（°）MAX. |
驻波比MAX. |
输入功率（watt）MAX. |
P/N |
2-50 |
0.20 |
22 |
0.2 |
2 |
1.20:1 |
500 |
PP2-20-450/22N |
2-100 |
0.30 |
20 |
0.2 |
4 |
1.30:1 |
500 |
PP2-19-450/22N |
2-200 |
0.60 |
20 |
0.3 |
5 |
1.30:1 |
500 |
PP2-18-450/22N |
10-250 |
0.50 |
25 |
0.25 |
5 |
1.30:1 |
200 |
PP2-13-450/50N |
1-450 |
0.85 |
17 |
0.3 |
5 |
1.50:1 |
500 |
PP2-17-450/21N |
5-500 |
0.80 |
18 |
0.5 |
5 |
1.40:1 |
50 |
PP2-14-450/1N |
250-500 |
0.30 |
20 |
0.3 |
5 |
1.30:1 |
100 |
PPS2-16-450/20N |
500-1000 |
0.30 |
20 |
0.3 |
5 |
1.30:1 |
100 |
PPS2-15-450/20N |
800-1000 |
0.30 |
25 |
0.20 |
4 |
1.20:1 |
100 |
PPS2-12-450/1N |
800-2200 |
0.50 |
18 |
0.50 |
5 |
1.40:1 |
100 |
PPS2-10-450/1N |
1700-2200 |
0.40 |
20 |
0.25 |
4 |
1.30:1 |
100 |
PPS2-11-450/1N |

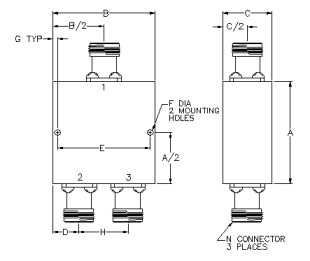

Outline 450 2 Hole Mount
Outline 450/16S 6 Hole Mount
Outline Dimensions |
Outline |
Conn. |
Mounts |
A |
B |
C |
D |
E |
F |
G |
H |
J |
450/1N |
N |
2 |
2.10 |
2.10 |
1.00 |
.55 |
1.90 |
.125 |
.100 |
1.00 |
-- |
450/20N |
N |
2 |
3.90 |
4.00 |
1.00 |
1.50 |
3.60 |
.150 |
.200 |
1.00 |
-- |
450/21N |
N |
6 |
6.00 |
3.00 |
1.80 |
0.75 |
2.75 |
.150 |
.130 |
1.50 |
0.50 |
450/22N |
N |
6 |
3.00 |
5.00 |
1.50 |
1.20 |
4.75 |
.150 |
.125 |
2.60 |
.125 |
450/50N |
N |
2 |
3.00 |
4.00 |
1.50 |
1.00 |
3.80 |
.125 |
.100 |
2.00 |
-- |
|
