Standard Gain Horn
Antenna |
|
|---|---|

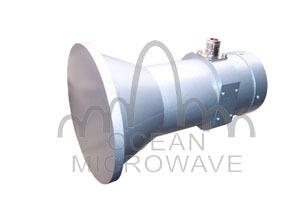

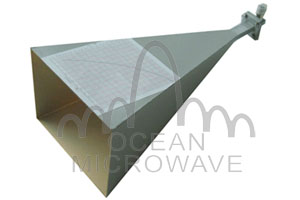

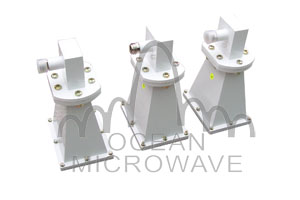

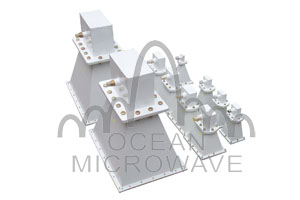

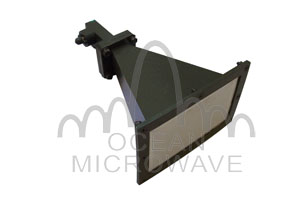

OLB series standard gain horn antennas are linearly polarized and provide an efficient low cost means of making measurements. OMC'S standard gain horn antenna can cover from 260MHz to 110GHz frequency range. These horn antennas are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications. Also we provide specific standard gain horn antennas according to customers' requirement. |
 |
 |
 |
|---|---|---|
 |
 |
 |
PN. |
Freq. (GHz) |
Waveguide |
Gain(mm) |
Connector |
Size (mm) |
Material |
Datasheet |
Horn antenna OLB-2100-10 |
0.35～0.53 |
WR2100/BJ－4 |
10 |
N |
1050×750×1800 |
AL. |
|
Horn antenna OLB-1800-10 |
0.41～0.62 |
WR1800/BJ－5 |
10 |
N |
900×650×1650 |
AL. |
|
Horn antenna OLB-1500-10 |
0.49～0.75 |
WR1500/BJ－6 |
10 |
N |
760×560×1400 |
AL. |
|
Horn antenna OLB-1150-10 |
0.64～0.98 |
WR1150/BJ－8 |
10 |
N |
600×440×1450 |
AL. |
|
Horn antenna OLB-975-10 |
0.76～1.15 |
WR975/BJ－9 |
10 |
N |
500×360×1230 |
AL. |
|
Horn antenna OLB-770-10 |
0.96～1.46 |
WR770/BJ－12 |
10 |
N |
404×284×548 |
AL. |
|
Horn antenna OLB-770-15 |
0.96～1.46 |
WR770/BJ－12 |
15 |
N |
610×460×780 |
AL. |
|
Horn antenna OLB-650-10 |
1.13～1.73 |
WR650/BJ－14 |
10 |
N |
304×279×410 |
AL. |
|
Horn antenna OLB-650-15 |
1.13～1.73 |
WR650/BJ－14 |
15 |
N |
567×423×650 |
AL. |
|
Horn antenna OLB-510-10 |
1.45～2.2 |
WR510/BJ－18 |
10 |
N |
264×184×358 |
AL. |
|
Horn antenna OLB-510-15 |
1.45～2.2 |
WR510/BJ－18 |
15 |
N |
440×325×530 |
AL. |
|
Horn antenna OLB-430-13.5 |
1.72～2.61 |
WR430/BJ－22 |
13.5 |
N |
313×232×420 |
AL. |
|
Horn antenna OLB-430-15 |
1.72～2.61 |
WR430/BJ－22 |
15 |
N |
385×290×450 |
AL. |
|
Horn antenna OLB-340-10 |
2.17～3.3 |
WR340/BJ－26 |
10 |
N |
184×124×248 |
AL. |
|
Horn antenna OLB-340-12 |
2.17～3.3 |
WR340/BJ－26 |
12 |
N |
207×146×260 |
AL. |
|
Horn antenna OLB-340-15 |
2.17～3.3 |
WR340/BJ－26 |
15 |
N |
310×240×390 |
AL. |
|
Horn antenna OLB-284-10 |
2.6～3.95 |
WR284/BJ－32 |
10 |
N |
120×100×260 |
AL. |
|
Horn antenna OLB-284-15 |
2.6～3.95 |
WR284/BJ－32 |
15 |
N |
220×170×360 |
AL. |
|
Horn antenna OLB-284-20 |
2.6～3.95 |
WR284/BJ－32 |
20 |
N |
390×285×660 |
AL. |
|
Horn antenna OLB-229-10 |
3.22～4.9 |
WR229/BJ－40 |
10 |
N |
124×84×168 |
AL./Cu. |
|
Horn antenna OLB-229-15 |
3.22～4.9 |
WR229/BJ－40 |
15 |
N |
210×150×320 |
AL. |
|
Horn antenna OLB-229-20 |
3.22～4.9 |
WR229/BJ－40 |
20 |
N |
350×260×520 |
AL. |
|
Horn antenna OLB-187-10 |
3.94～5.99 |
WR187/BJ－48 |
10 |
N |
100×75×200 |
AL./Cu. |
|
Horn antenna OLB-187-15 |
3.94～5.99 |
WR187/BJ－48 |
15 |
N |
170×120×260 |
AL./Cu. |
|
Horn antenna OLB-187-20 |
3.94～5.99 |
WR187/BJ－48 |
20 |
N |
285×220×440 |
AL. |
|
Horn antenna OLB-159-10 |
4.64～7.05 |
WR159/BJ－58 |
10 |
N |
84×69×138 |
AL./Cu. |
|
Horn antenna OLB-159-15 |
4.64～7.05 |
WR159/BJ－58 |
15 |
N |
138×103×150 |
AL./Cu. |
|
Horn antenna OLB-159-20 |
4.64～7.05 |
WR159/BJ－58 |
20 |
N |
225×173×325 |
AL. |
|
Horn antenna OLB-137-10 |
5.38～8.17 |
WR137/BJ－70 |
10 |
N |
67×52×158 |
AL./Cu. |
|
Horn antenna OLB-137-15 |
5.38～8.17 |
WR137/BJ－70 |
15 |
N |
143×113×218 |
AL./Cu. |
|
Horn antenna OLB-137-20 |
5.38～8.17 |
WR137/BJ－70 |
20 |
N |
205×160×330 |
AL. |
|
Horn antenna OLB-112-10 |
6.57～9.99 |
WR112/BJ－84 |
10 |
N |
57×42×130 |
AL./Cu. |
|
Horn antenna OLB-112-15 |
6.57～9.99 |
WR112/BJ－84 |
15 |
N |
102×71×180 |
AL./Cu. |
|
Horn antenna OLB-112-20 |
6.57～9.99 |
WR112/BJ－84 |
20 |
N |
172×128×275 |
AL./Cu. |
|
Horn antenna OLB-90-10 |
8.2～12.5 |
WR90/BJ－100 |
10 |
N/SMA |
47×41×113 |
AL./Cu. |
|
Horn antenna OLB-90-15 |
8.2～12.5 |
WR90/BJ－100 |
15 |
N/SMA |
84×60×143 |
AL./Cu. |
|
Horn antenna OLB-90-20 |
8.2～12.5 |
WR90/BJ－100 |
20 |
N/SMA |
138×107×238 |
AL./Cu. |
|
Horn antenna OLB-90-22 |
8.2～12.5 |
WR90/BJ－100 |
22 |
N/SMA |
195×145×240 |
AL./Cu. |
|
Horn antenna OLB-90-25 |
8.2～12.5 |
WR90/BJ－100 |
25 |
N/SMA |
310×240×695 |
AL./Cu. |
|
Horn antenna OLB-75-10 |
9.84～15 |
WR75/BJ－120 |
10 |
N/SMA |
43×33×95 |
AL./Cu. |
|
Horn antenna OLB-75-15 |
9.84～15 |
WR75/BJ－120 |
15 |
N/SMA |
68×48×120 |
AL./Cu. |
|
Horn antenna OLB-75-20 |
9.84～15 |
WR75/BJ－120 |
20 |
N/SMA |
108×83×190 |
AL./Cu. |
|
Horn antenna OLB-75-25 |
9.84～15 |
WR75/BJ－120 |
25 |
N/SMA |
185×155×430 |
AL./Cu. |
|
Horn antenna OLB-62-10 |
11.9～18.0 |
WR62/BJ－140 |
10 |
N/SMA |
37×27×87 |
AL./Cu. |
|
Horn antenna OLB-62-15 |
11.9～18.0 |
WR62/BJ－140 |
15 |
N/SMA |
50×35×87 |
AL./Cu. |
|
Horn antenna OLB-62-22 |
11.9～18.0 |
WR62/BJ－140 |
22 |
N/SMA |
130×96×319 |
AL./Cu. |
|
Horn antenna OLB-62-25 |
11.9～18.0 |
WR62/BJ－140 |
25 |
N/SMA |
167×130×375 |
AL./Cu. |
|
Horn antenna OLB-51-10 |
14.5～22 |
WR51/BJ－180 |
10 |
N/SMA |
32×22×74 |
AL./Cu. |
|
Horn antenna OLB-51-15 |
14.5～22 |
WR51/BJ－180 |
14 |
N/SMA |
44×34×87 |
AL./Cu. |
|
Horn antenna OLB-51-20 |
14.5～22 |
WR51/BJ－180 |
14 |
N/SMA |
77×60×137 |
AL./Cu. |
|
Horn antenna OLB-51-25 |
14.5～22 |
WR51/BJ－180 |
14 |
N/SMA |
130×100×327 |
AL./Cu. |
|
Horn antenna OLB-42-10 |
17.6～26.7 |
WR42/BJ－220 |
10 |
3.5/K |
25×18×69 |
Cu. |
|
Horn antenna OLB-42-14 |
17.6～26.7 |
WR42/BJ－220 |
14 |
3.5/K |
31×22×70 |
Cu. |
|
Horn antenna OLB-42-20 |
17.6～26.7 |
WR42/BJ－220 |
20 |
3.5/K |
63.5×49.5×117 |
Cu. |
|
Horn antenna OLB-42-25 |
17.6～26.7 |
WR42/BJ－220 |
25 |
3.5/K |
117×90×270 |
Cu. |
|
Horn antenna OLB-34-10 |
21.7～33 |
WR34/BJ－260 |
10 |
3.5/K |
22×17×64 |
Cu. |
|
Horn antenna OLB-34-13 |
21.7～33 |
WR34/BJ－260 |
13 |
3.5/K |
25×19×55 |
Cu. |
|
Horn antenna OLB-34-20 |
21.7～33 |
WR34/BJ－260 |
20 |
3.5/K |
54×42×120 |
Cu. |
|
Horn antenna OLB-34-25 |
21.7～33 |
WR34/BJ－260 |
25 |
3.5/K |
92×72×245 |
Cu. |
|
Horn antenna OLB-28-10 |
26.3～40.0 |
WR28/BJ－320 |
10 |
3.5/K |
17×15×60 |
Cu. |
|
Horn antenna OLB-28-14 |
26.3～40.0 |
WR28/BJ－320 |
15 |
3.5/K |
23×17×55 |
Cu. |
|
Horn antenna OLB-28-20 |
26.3～40.0 |
WR28/BJ－320 |
20 |
3.5/K |
40.5×32×95 |
Cu. |
|
Horn antenna OLB-28-25 |
26.3～40.0 |
WR28/BJ－320 |
25 |
3.5/K |
80×65×200 |
Cu. |
Contact for more about horn antenna: Tel：+86-10-60290088  sales@oceanmicrowave.com |
|---|
|
